[Full-Version] 2022 New TestPDF NS0-176 PDF Recently Updated Questions
NS0-176 Exam with Guarantee Updated 141 Questions
NetApp NS0-176 Exam Topics:
| Section | Objectives |
|---|---|
| FlexPod Administration | - Demonstrate knowledge of how to administer FlexPod solutions according to FlexPod best practices - Describe FlexPod management applications - Demonstrate knowledge of how to install and upgrade the FlexPod solution |
| FlexPod Troubleshooting | - Demonstrate how to perform FlexPod troubleshooting |
| Information Gathering for FlexPod Solutions | - Describe the main FlexPod components |
| FlexPod Design | - Describe the storage components supported in FlexPod - Describe the networking components supported in FlexPod - Describe the compute components supported in FlexPod |
NEW QUESTION 55
Which three are characteristics of a NAS data LIF? (Choose three.)
- A. It can be associated with a WWPN
- B. It can be associated with an IP address.
- C. It can be associated with an interface group (ifgrp).
- D. It can be associated with an Ethernet port or VLAN interface.
- E. It is associated with the administrative Vserver.
- F. It is associated with the management LIF.
- G. It can be associated with a Fibre Channel port.
Answer: B,C,D
NEW QUESTION 56
In which two locations is the VSAN ID configured in a FlexPod solution? (Choose two.)
- A. Nexus switches
- B. UCS Manager
- C. Storage Virtual Machine
- D. hypervisor adapter
Answer: A,B
NEW QUESTION 57
Which two are required for single-wire management for Cisco UCS C-Series? (Choose two)
- A. VIC 1240
- B. Redundant Nexus 2232PP FEX
- C. FI 6200 family only
- D. VIC 1225
- E. UCS Manager 2.1 or higher
- F. 10 GB LOM
Answer: D,E
NEW QUESTION 58
What are two valid cluster interconnect switches? (Choose two.)
- A. NetApp CN610
- B. Cisco Nexus 7004
- C. Cisco Nexus 9504
- D. Cisco Nexus 5596
Answer: A,D
NEW QUESTION 59
An administrator is configuring a Flexpod Datacenter solution. The UCS service profiles will use FCoE connectivity to the NetApp cluster.
Which pool is needed to configure the vHBA templates?
- A. MAC pool
- B. WWNN pool
- C. IQN pool
- D. WWPN pool
Answer: D
NEW QUESTION 60
When creating a virtual machine in VMware vSphere 5.x, which type of virtual disk should be provisioned if you would like to fully pre-allocate storage with the highest chance of being contiguous?
- A. Thick Provision Eager Zeroed
- B. Thick Provision Lazy Zeroed
- C. Thin Provision
- D. Full Provision
Answer: A
NEW QUESTION 61
An administrator has a FlexPod solution and is using OnCommand Unified Manager and OnCommand Performance Manager to monitor the FlexPod environment. Full integration has previously been configured between the two OnCommand virtual appliances; however, new performance issues are not being seen in the OnCommand Unified Manager dashboard.
In this scenario, which two settings should the administrator verify? (Choose two.)
- A. Ensure that the NetApp cluster is configured to forward SNMP data to OnCommand Performance Manager.
- B. Ensure that OnCommand Performance Manager is licensed for use with OnCommand Unified Manager.
- C. Ensure that the Event Publisher user credentials are entered correctly on the OnCommand Performance Manager appliance.
- D. Ensure that network connectivity exists between the two virtual appliances.
Answer: B,C
NEW QUESTION 62
Which two are characteristics of a Fibre Channel SAN data LIF? (Choose two.)
- A. It can be associated with an Ethernet port or VLAN interface.
- B. It can be associated with a Fibre Channel port.
- C. It is associated with the administrative Vserver.
- D. It is associated with the management LIF.
- E. It can be associated with an IP address.
- F. It can be associated with an interface group (ifgrp).
- G. It can be associated with a WWPN.
Answer: B,G
NEW QUESTION 63
Which statement is true about NFS exports in Clustered Data ONTAP?
- A. Exports can be either persistent or temporary, and export policies and rules need to be set at the data Vserver level.
- B. Export policies and rules need to be set at the data Vserver level.
- C. Exports can be either persistent or temporary.
- D. Export policies and rules need to be set at the data Vserver level and export policies are created and modified by editing /etc/exports on the node with the share.
- E. Export policies are created and modified by editing /etc/exports on the node with the share.
Answer: B
NEW QUESTION 64

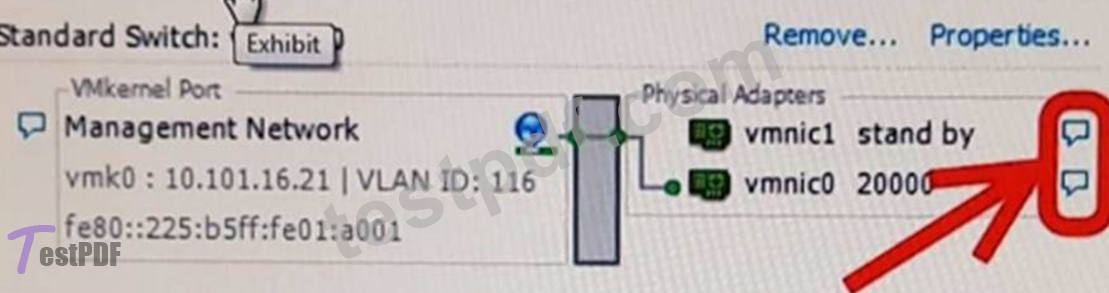

Exhibit:
You have a FlexPod solution with vSphere ESXi. When you click the icons shown in the exhibit, you do not see any network connectivity details.
Which Cisco UCS policy type should you create to enable visibility of these details?
- A. LAN Connectivity Policy
- B. Link Profile Policy
- C. Link Protocol Policy
- D. Network Control Policy
Answer: A
NEW QUESTION 65
You are asked to install the Virtual Supervisor Module (VSM) software on a Nexus 1000v switch.
Which two sources would you use to install this software? (Choose two.)
- A. PXE boot
- B. OVA file
- C. VSC plug-in
- D. ISO image
Answer: A,D
NEW QUESTION 66
Which feature allows Cisco Nexus 7000 Series switches to be virtualized at the device level?
- A. VDC
- B. PONG
- C. VRF
- D. VLAN
Answer: A
NEW QUESTION 67
What aggregate containing the root volume is created during the Clustered Data ONTAP setup process?
- A. 8-bit
- B. 64-bit
- C. 32-bit
- D. 16-bit
Answer: B
NEW QUESTION 68
To install your VEM, what is the extension of the VEM file name you'll be looking for to complete this install?
- A. .zip
- B. .vem
- C. .vib
- D. .vsm
Answer: C
NEW QUESTION 69
An administrator has a FlexPod solution with VMware vSphere. The administrator is migrating all network traffic from standard switches to vSphere distributed switches.
Virtual machines (VMs) are currently using VM port groups called VLAN_500 and VLAN_501 on standard virtual switch vSwitch3. A new distributed switch called dvSwitch_VM is created and new distributed port groups are configured for each VM traffic VLAN. VMs are configured to use the new port groups.
After the change, VMs on VLAN 501 report a loss of network connectivity; however, VMs on VLAN 500 are not showing any connectivity issues. The symptoms are experienced for VMs on all ESXi hosts.
Which action must the administrator perform to solve the problem?
- A. Create a new vmkernel port on dvSwitch_VM for VLAN 501.
- B. Configure the dvSwitch_VM port binding to Ephemeral.
- C. Add the correct VLAN ID to the new distributed port group for VLAN 501.
- D. Reboot the virtual machines to re-establish network connectivity.
Answer: B
NEW QUESTION 70

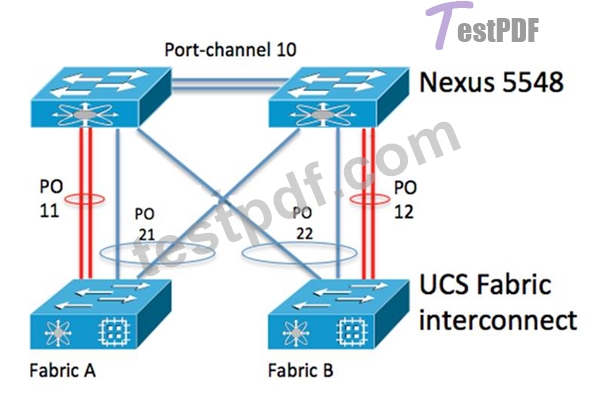

Refer to the exhibit.
Which is correct for configuring FCoE?
- A. vlan 33fcoe vsan 43int po21switchport trunk allowed vsan add 43int vfc11bind interface po21vsan databasevsan 43 interface vfc 11
- B. vlan 33fcoe vsan 43int po11switchport trunk allowed vlan add 33int vfc11bind interface po11switchport trunk allowed vsan 43vsan databasevsan 43 interface vfc11
- C. fcoe vsan 43int po11switchport trunk allowed vsan add 43vsan databasevsan 43
- D. fcoe vlan 33int po11switchport trunk allowed vlan add 33vsan databasevsan 33
- E. fcoe vsan 43int po21switchport trunk allowed vsan add 43vsan databasevsan 43
Answer: B
NEW QUESTION 71
......
NetApp NS0-176 Exam Certification Details:
| Exam Name | Cisco and NetApp FlexPod Implementation and Administration |
| Exam Price | $150 USD |
| Sample Questions | NetApp NS0-176 Sample Questions |
| Number of Questions | 60 |
| Passing Score | 68% |
| Exam Registration | PEARSON VUE |
